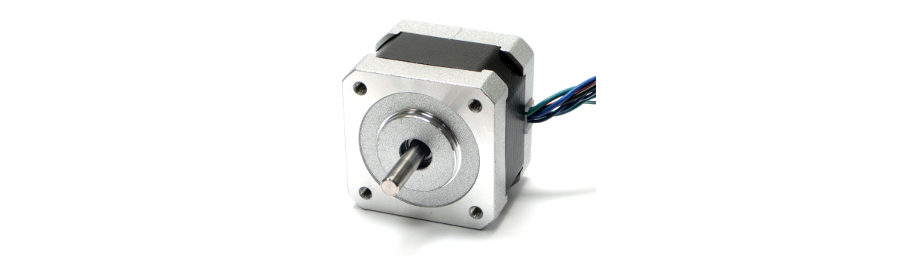

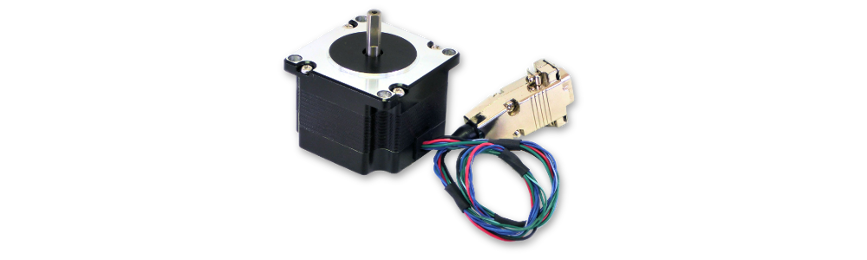

Mosolver combines a motor and resolver in a single package to provide compact, robust closed-loop motion control with built-in position feedback. NEMA 17 and NEMA 23 models eliminate the need for a separate encoder.
The Mosolver is a servo motion actuator that integrates a position feedback sensor into the structure of a high-pole-count AC motor. Additional sense coils provide rotor position information. Voltages are induced in those coils by a combination of PWM current ripple and flux steering resulting from rotor and stator interaction.
Eliminating a separate feedback device reduces cost and size, eliminates separate-device alignment and the possibility of losing that alignment, and improves system ruggedness.
The original Mosolver materials list US patents 7,075,196; 7,508,154; 7,538,460; and 7,723,942, and European patent publication EP 1 850 461 A1.
Mosolver can be used in a wide range of applications:
The following specifications were listed on the original Mosolver datasheets page. Please contact QuickSilver Controls to confirm current specifications and availability for your application.
